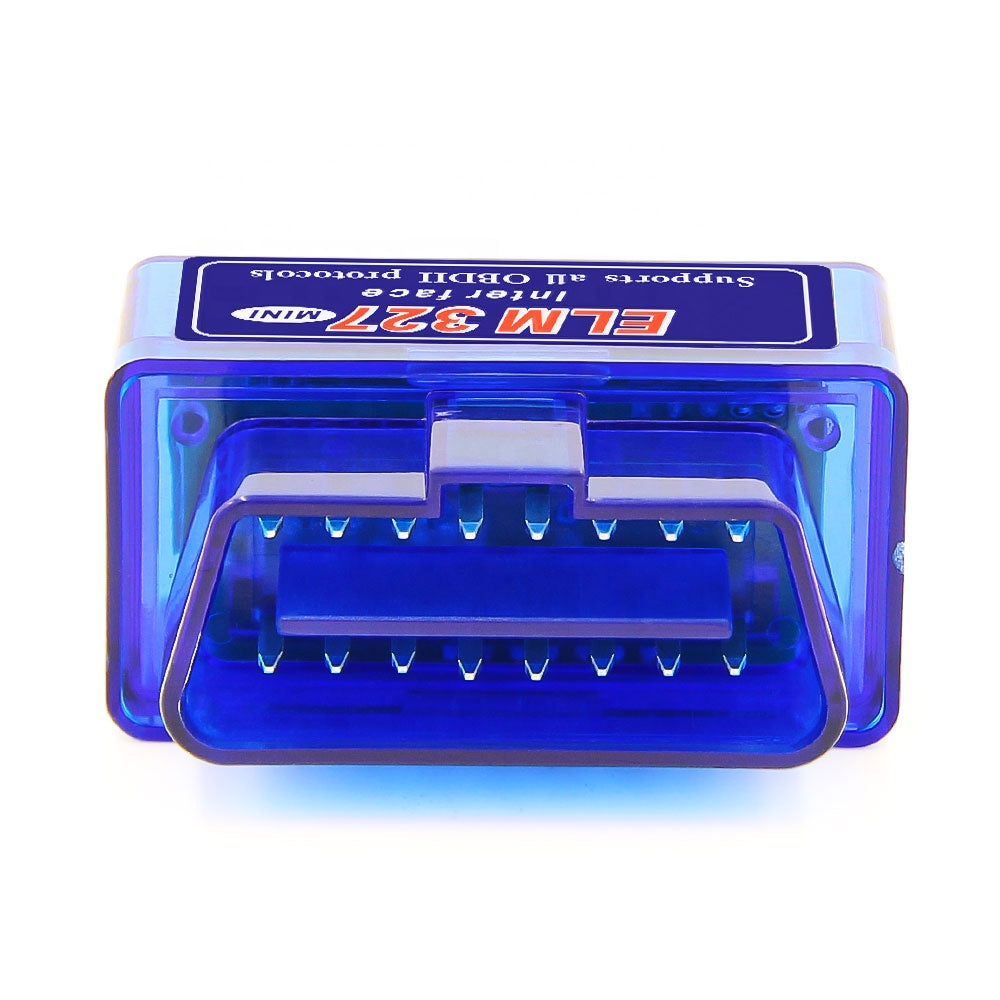

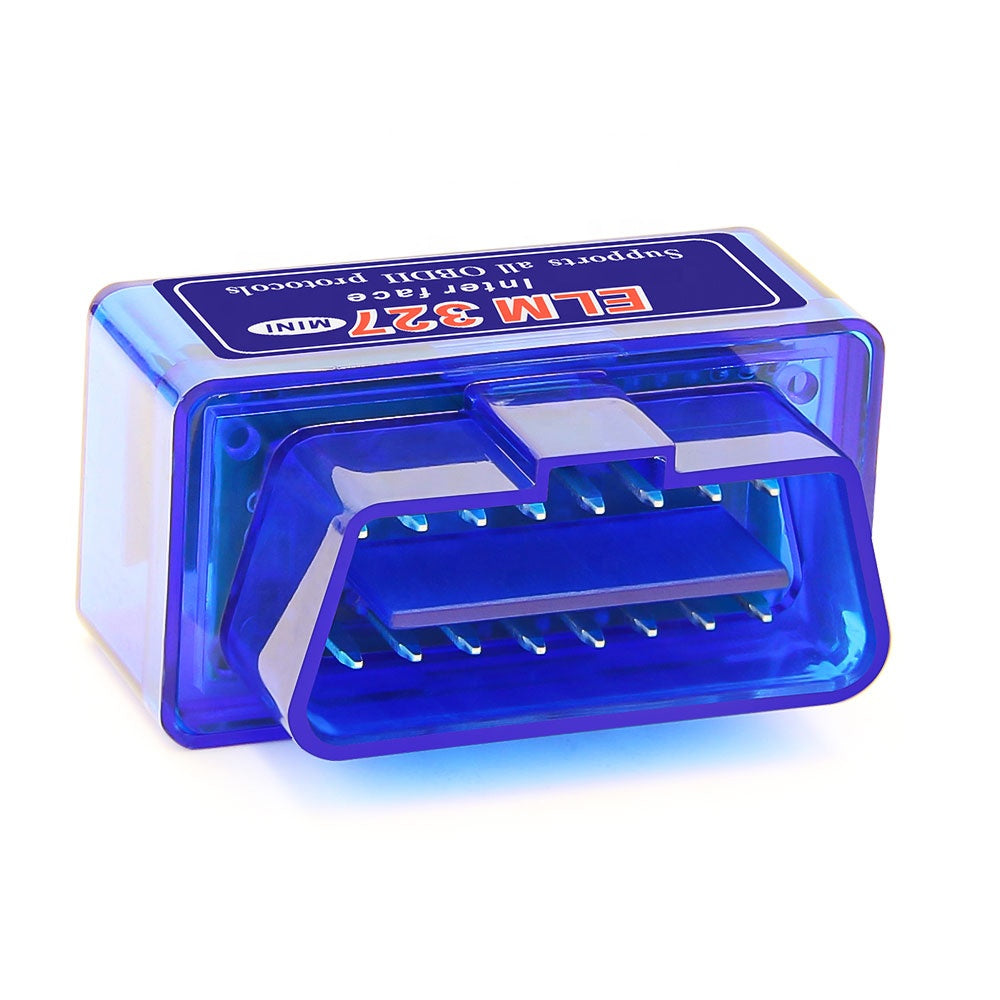

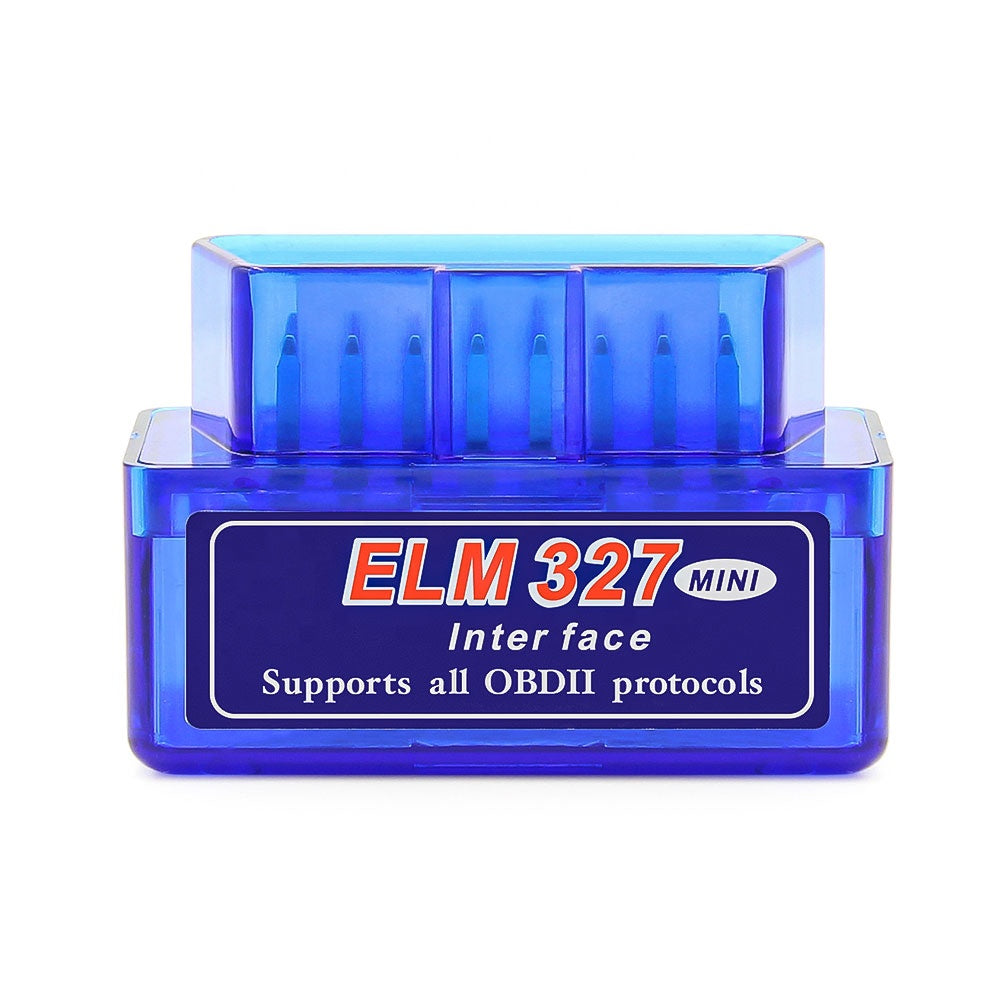

MINI ELM327 V1.5 PIC18F25K80 draadloze diagnose tool obd2
MINI ELM327 V1.5 PIC18F25K80 draadloze diagnose tool obd2
Kan beschikbaarheid voor afhalen niet laden
Top 5 Reasons To Get Super MINI ELM327 Blue-tooth
1. Software Version: V2.1
2. Hardware Version: V1.5
3. Works with all OBD-II compliant vehicles
4. Wireless (Blue-tooth)
5. Software included for Palm, PDA, Windows PC, Windows Smartphone
6.PIC18F25K80 Chip
3 Colors Optional: Blue, Black, White
Supported protocols:
| 1.SAE J1850 PWM (41.6Kbaud) |
| 2.SAE J1850 VPW (10.4Kbaud) |
| 3.ISO9141-2 (5 baud init, 10.4Kbaud) |
| 4.ISO14230-4 KWP (5 baud init, 10.4 Kbaud) |
| 5.ISO14230-4 KWP (fast init, 10.4 Kbaud) |
| 6.ISO15765-4 CAN (11bit ID, 500 Kbaud) |
| 7.ISO15765-4 CAN (29bit ID, 500 Kbaud) |
| 8.ISO15765-4 CAN (11bit ID, 250 Kbaud) |
| 9.ISO15765-4 CAN (29bit ID, 250 Kbaud) |
Mini OBD2 Blue-tooth Scanner Specifications:
Communication: Blue-tooth 2.0
Master Chip: PICI8F25K80
Support System: Android and Windows
Working Voltage: 9v ~ 16v
Working Current: 35mA
Standby Current: 25mA
Operating temperature: -40 ℃ ~ 85 ℃
Working Humidity: less than 60%
Size: 43mm * 25mm * 30mm
Compatible systems:
Software support platform: Windows XP, Windows 7/8, Android, Symbian .
Compatible software:
Window : ScanMaster-ELM, ScanTool.net, PCMSCAN ELM, etc.
Android : Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBD, EOBD, etc.
Symbian : OBDScope
Super Mini ELM327 Blue-tooth Functions:
1: Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2: Clear trouble codes and turn off the MIL ( "Check Engine" light)
3: Display current sensor data, including:
4: Engine RPM
5: Calculated Load Value
6: Coolant Temperature
7: Fuel System Status
8: Vehicle Speed
9: Short Term Fuel Trim
10: Long Term Fuel Trim
11: Intake Manifold Pressure
12: Timing Advance
13: Intake Air Temperature
14: Air Flow Rate
15: Absolute Throttle Position
16: Oxygen sensor voltages / associated short term fuel trims
17: Fuel System status
18: Fuel Pressure
19: Many others
